Learning Hub/Strength of Materials/Lecture Slides/Lecture 2

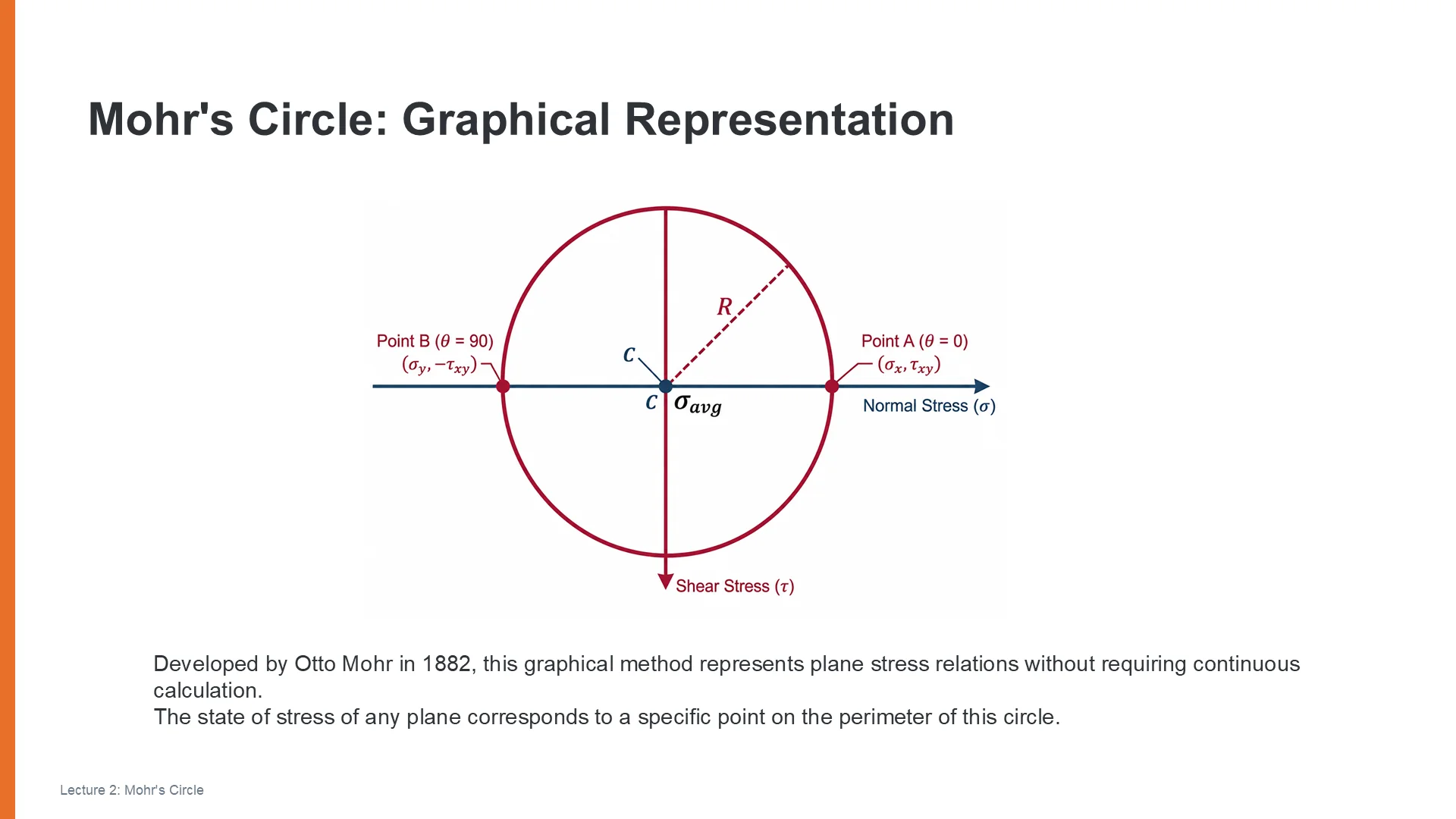

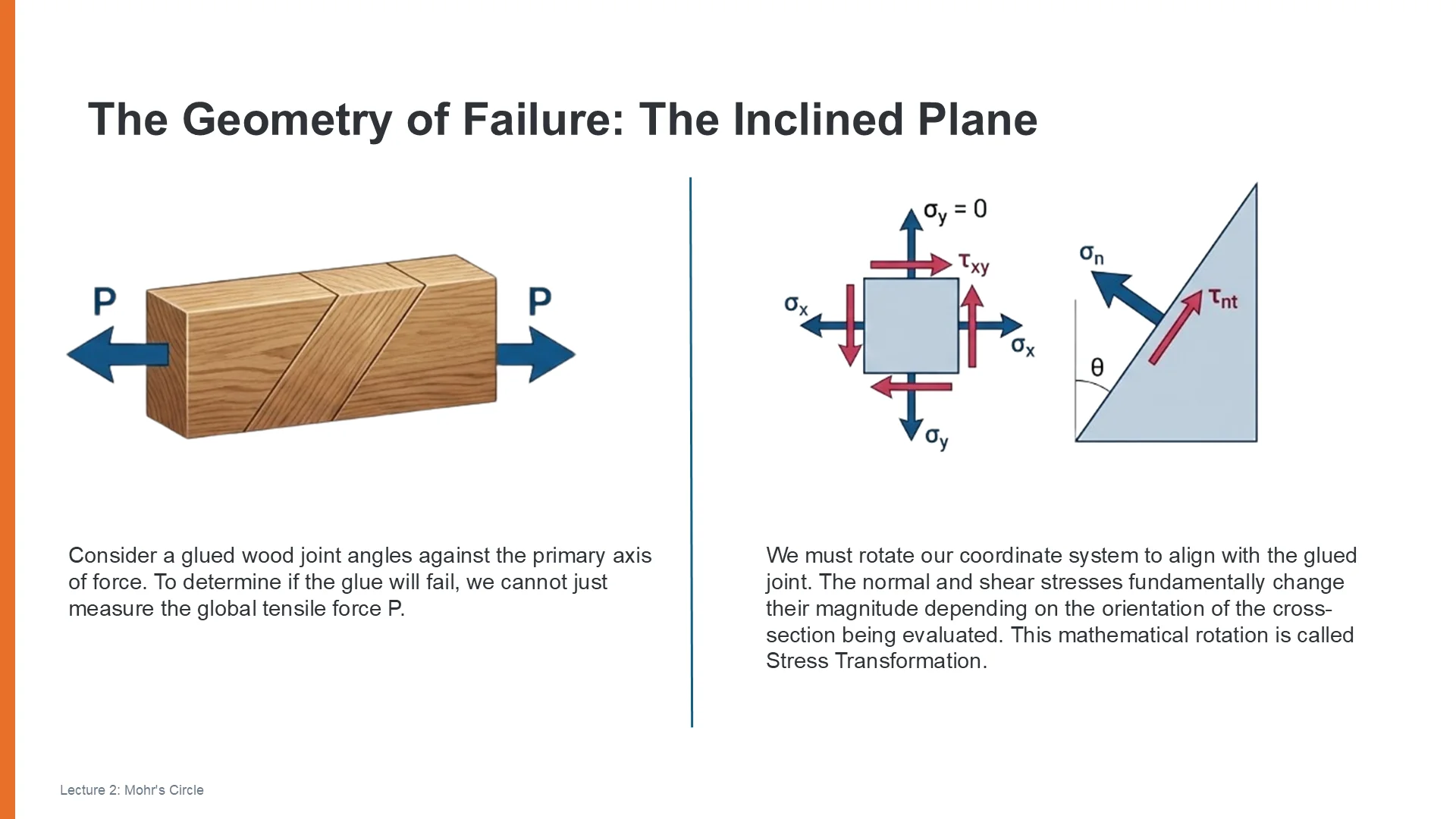

Mohr's Circle

Lecture SlidesSolved Examples
Mohr's Circle, slide 1 of 10
1 / 10

Use ← → keys or swipe to move between slides.

Lecture Slides
Strength of Materials
  • Lecture 1Cross Section Properties13 slides
  • Lecture 2 · ViewingMohr's Circle10 slides
  • Lecture 3Flexural Stresses and Their Distribution Along Section Depth11 slides
  • Lecture 4Shear Stresses and Their Distribution Along Section Depth9 slides
  • Lecture 5Non-linear Material Behavior and Stress-Strain Models12 slides
  • Lecture 6Biaxial Bending and Unsymmetrical Bending9 slides
